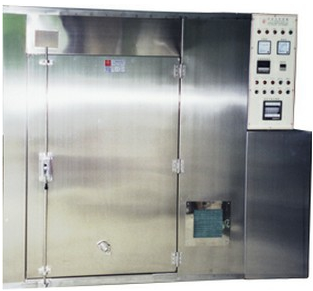

产品名称:透气式干燥机(粉末&颗粒)   Though-Cicrulation Dryer (Powder&Granulator)

适用:

用于制药厂,粉末颗粒,合同原料,杀虫剂,人造树脂医药,纺织,及其他化学,食品,燃料等产品。

Application:

Suitable for chemical, foods, pigments, dyeing materials, pesticides, synthetic resin medicine, fiber, gain particles, stomach medicine powder, garlic and seafood product etc.

特点:

物料可通过打开的盖子手动放入搅拌器或者通过适当的入口全自动放入搅拌器。圆锥形的搅拌罐体可防止物料粘附并使其顺利流转。成品经离心力由气动卸料阀入成品罐或直接入流化床罐。

Product Character:

Raw material feeding to high speed mixer can be manual through the fully open lid, or completely automatic through suitable inlets on the lid. Conical mixing bowl structure helps preventing an adhesion of raw material and providing a smoother flow of materials inside the bowl. Finished product is discharged by centrifugal forcre through pneumatic discharge valve into product container or directly to fluid bed dryer bowl.

特色:

干燥高效率,节省时间及劳工成本,干燥时间比一般烤箱快三倍以上。 大容量干燥,低能源消耗损失,机器容易安装。 适合各种产品干燥,包括粉末物体及颗粒等。 设有可调整挡板,室内温度均匀分布,勿须改变位置可使热风对产品产生高渗透性。 可干燥可燃性产品(混合酒精)。 空气人口使用过滤装置以确保产品品质。 采用可程式控制系统,易于检查维修及操作。

Feature:

1. Drying high efficiency, save time and labor cost, the time faster than general oven 3times or more.
2. Drying big capacity, low energy consumption loss, and machine easy to install and clean.
3. Suitable for various products drying both powder objects and grain particles etc.
4. Adjustable damper in the chamber, whole chamber temperature heat distribution very uniformly.
5. Can dry inflammable product (mix alcohol)
6. Inlet make filter device, to ensure product quality.
7. Adopt PLC control system, easy operate and maintain.

结构:

加热设备可使用电热器或蒸汽源。 使用高速循环风扇马达。(fan motor) 可选择盘式或台车式型式。 以产品湿度来控制自动排气口挡板装置。 机体具有安全防爆门设施。 电路上有超温保护,马达等异常保护措施。

Structure:

1. Heating equipment uses either heater or steam source.
2. Make high-speed circulation fan motor
3. Tray type or trolley type option.
4. Automatic outlet exhaustion damper device, control by product humidity.
5. Body have explosion proof safety door.
6. Electric circuit has over temperature, motor and belt etc. Abnormal protection action

型号:

型号 室内尺寸(W×H×D) 最大处理量(Kg/批) 板数 加热器能耗(Kw)
ETD-80 800×1000×600 80 8 10
ETD-120 1020×1500×720 120 14 18
ETD-200 1300×1750×1500 200 28 蒸汽30
ETD-300 1600×2000×1780 300 32 蒸汽42

Module:

Module Chamber Dimension (W×H×D) Capacity (Kg/ Batch) Chamber Plate Heater Capacity (Kw)
ETD-80 800×1000×600 80 8 10
ETD-120 1020×1500×720 120 14 18
ETD-200 1300×1750×1500 200 28 Steam 30
ETD-300 1600×2000×1780 300 32 Steam 42
"
