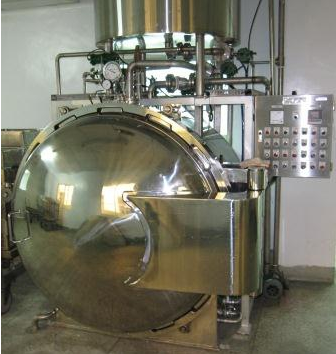

产品名称:高压蒸汽灭菌柜   Steam/ E.O. Gas Sterilizer

适用:

适用器具,无菌衣、胶塞、液剂(安瓶、西林瓶)、大输液(塑料瓶、软袋或玻璃瓶)等物品蒸汽高温灭菌

Application:

For solution, rubber, glass bottle and sterilizing clothes etc. For instrument, solution, clothes, rubber, wrapped or unwrapped material sterilization. For the menbrance container, PVC or PP etc. material sterilization.

结构:

机器结构全部采用不锈钢304、316L制造,完全符合GMP要求。 设备上门座采用矽胶材质密封,关门时紧密封合,绝无蒸汽外泄之虑。 多种式灭菌动作流程。真空度、温度、压力及时间皆可自由设定,可依客户需要指定更多种流程。 温度自动控制器采用P.I.D自动演算,同时以LED显示实际温度值。 门设有互锁装置,以避免不同等级空气造成污染。 六点式多功能记录器装置,可完整记录灭菌中各点温度分布及压力情形,可依据体积大小另选购12点式温度记录器。 夹套内以蒸汽加热,保持温度稳定及做真空干燥用。 单门式或双门贯通式设计,皆可供应。 设有温度确效孔,使QA人员能测灭菌锅内空载热分布及满载热渗透F0值,可与电脑连线监控(RS232)

Constuction:

1. The structure of the machine all take 304 stainless steel 316L and meets the requirement of GMP.
2. The upper door of the equipment takes silica gel to be sealed. When it’s closed, it’s sealed tightly without leakage.
3. Multiple sterilization movement flow : vacuum degree, temperature, pressure and time can be set freely. It can be modified by customer’s requirement.
4. Temperature automatic controller adopts PLD automatic calculation and displays actual temperature by LED.
5. The door is equipped with interlock device to avoid different level of air pollution.
6. Six point multiple function recorder can record the temperature of each point and the pressure condition. Twelve point temperature is operational according to the volume.
7. Heat the jacket by steam to keep the stability of temperature and for the use of the vacuum drying.
8. single door or double door one pass desing can be provided
9. It has the temperature hole to let QA staff test layout of no-load inside the sterilization pot and the FO of full load. It can be connected with computer.(RS232 )

控制系统:

1、高压蒸汽灭菌柜上有一个中央控制面板,由可编程序逻辑控制器(PLC),信号调节单元,安全电路和总开关设备组成。机器由PLC实时控制,可控操作者和每个灭菌周期的配方参数。
2、面板使用LCD触摸控制。
3、流程使用PLC控制,便于操作,可提供三个灭菌程序或根据客户需求提供。
4、操作简单安全,自动程序提供全面、安全的操控,以确保安全操作环境。
5、温度记录器可持续校对灭菌过程中的温度。
6、选择RS232可与计算机连接计算F0。

Control System:

1. The autoclave has a central control panel, which houses the programmable logic controller (PLC), signal conditioning units, safety circuits and general switchgear. The autoclave is controlled at all time by the PLC, which contains the operation programmers and recipe parameters for each sterilization cycle.
2. The panel use LCD touch screen control.
3. Program flow, use PLC control, for easy of operation and provide three sterilization programs or by customer specifications.
4. Simple& safe operation, the automatic programs provide with complete and safety control to ensure safe operation condition.
5. Temperature recorder for continuous checking of the sterilization process (6 points)
6. Option RS232 can conntect with computer direct to calculate F0. Following documentation is supplied with plants.

型号

型号 产能/升 蒸汽耗量(Kg/Hr) 耗水量(Kg/Hr) 耗电量(Kw) 腔内尺寸(W×H×D) 外形尺寸(W×H×D)
APSR-200 200 55 30 1.5 500×500×800 1500×1800×1350
APSR-668 288 60 30 1.7 600×600×800 1600×1950×1350
APSR-400 400 100 40 2.3 500×800×1000 1500×2150×1750
APSR-8108 640 120 40 2.8 800×800×1000 1800×2150×1750
APSR-1010 1000 150 50 4.0 1000×1000×1000 2050×2300×1950
APSR-101313 1780 160 60 5.0 1100×1300×1250 2150×2550×2300
APSR-7200 7200 290 70 8.2 1200×2000×3000 2200×3300×3950
APSR-500Φ 177 50 25 1.5 Φ500×900 Φ600×1100
APSR-1550Φ 4720 180 60 5.2 Φ1550×2500 Φ1250×3200
APSR-1800Φ 15000 300 70 8.6 Φ1800×6000 Φ2050×7000

Model

Model Capacity (Liter) Steam Consumption(Kg/Hr) Water Consumption(Kg/Hr) Electricity Consumption(Kw) Chamber Dimension(W×H×D) External Dimension(W×H×D)
APSR-200 200 55 30 1.5 500×500×800 1500×1800×1350
APSR-668 288 60 30 1.7 600×600×800 1600×1950×1350
APSR-400 400 100 40 2.3 500×800×1000 1500×2150×1750
APSR-8108 640 120 40 2.8 800×800×1000 1800×2150×1750
APSR-1010 1000 150 50 4.0 1000×1000×1000 2050×2300×1950
APSR-101313 1780 160 60 5.0 1100×1300×1250 2150×2550×2300
APSR-7200 7200 290 70 8.2 1200×2000×3000 2200×3300×3950
APSR-500Φ 177 50 25 1.5 Φ500×900 Φ600×1100
APSR-1550Φ 4720 180 60 5.2 Φ1550×2500 Φ1250×3200
APSR-1800Φ 15000 300 70 8.6 Φ1800×6000 Φ2050×7000
"
