适用:

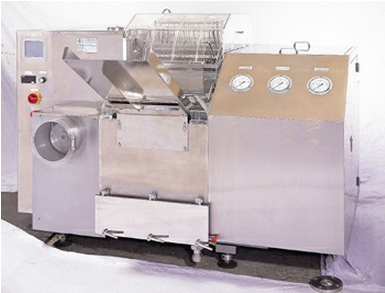

全自动洗瓶干燥机用于清洁安瓿及制药用瓶,机器水平旋转结构,采用喷射高压水和空气喷雾的超声波清洗方式。 全自动洗瓶干燥机完全符合GMP法规和提供IQ及OQ相关资料。
Application:
This ultrasonic cleaning machine is used for clean ampoule & vials in the pharmaceutical factory, the machine is horizontal rotary structure and adopts the machine form which unites the ultrasonic cleaning, with the cleaning of jetting high pressure water and air spray. Ensure the washing machine completely corresponds with cGMP regulation and offers IQ & OQ relevant document.
型号 | 外观尺寸 | 加热器(Kw) | 风扇(Kw) | 最高 温度(℃) | 1-2 Amp. | 3cc 瓶 | 3-5 Amp. | 5cc 瓶 | 10cc Amp. | 10cc 瓶 | 200cc Amp. | 20cc 瓶 |
ETS-030 | 960×2100×3200 | 24 | 3.75 | 350 | 12000 | 5000 | 6000 | 3000 | 4500 | 2500 | 3000 | 2000 |
ETS-060 | 1360×2100×3200 | 36 | 6 | 350 | 24000 | 10000 | 12000 | 6000 | 9000 | 5000 | 5000 | 4000 |
ETS-090 | 1760×2100×3200 | 45 | 8.25 | 350 | 18000 | 9000 | 13500 | 7500 | 7500 | 5000 | ||
ETS-120 | 2100×2100×3200 | 57 | 9.75 | 350 | 24000 | 12000 | 18000 | 10000 | 8500 | 6000 |
Model | Over Dimension (W×H×L) | Heater(Kw) | Fan(Kw) | Max Temp.(℃) | 1-2 Amp. | 3cc Vial | 3-5 Amp. | 5cc Vial | 10cc Amp. | 10cc Vial | 200cc Amp. | 20cc Vial |
ETS-030 | 960×2100×3200 | 24 | 3.75 | 350 | 12000 | 5000 | 6000 | 3000 | 4500 | 2500 | 3000 | 2000 |
ETS-060 | 1360×2100×3200 | 36 | 6 | 350 | 24000 | 10000 | 12000 | 6000 | 9000 | 5000 | 5000 | 4000 |
ETS-090 | 1760×2100×3200 | 45 | 8.25 | 350 | 18000 | 9000 | 13500 | 7500 | 7500 | 5000 | ||
ETS-120 | 2100×2100×3200 | 57 | 9.75 | 350 | 24000 | 12000 | 18000 | 10000 | 8500 | 6000 |
