特性:
1、机器包括四个部分:清洗机→干燥隧道→消毒隧道→干燥系统
2、隧道式全自动洗瓶干燥机的设计要点是依据通过洁净空气使得安瓿和瓶子达到Class100以内的高清洁度Class100,完全符合GMP要求,,同时我们提供IQ及OQ相关文件。
3、隧道式全自动洗瓶干燥机包括三室,首先预热室、中间加热室,最后冷却区。同时,控制系统使用硅控整流器模块,使加热室温度热导出气孔非常均匀,所有风机和输送速度可控,可按客户需求定制。
4、耐高温材料设计、高温和高效率
5、高效微粒空气过滤器确保产品去污,完整的结构和控制系统可保护和信息,故障排除将易解决。
Application:

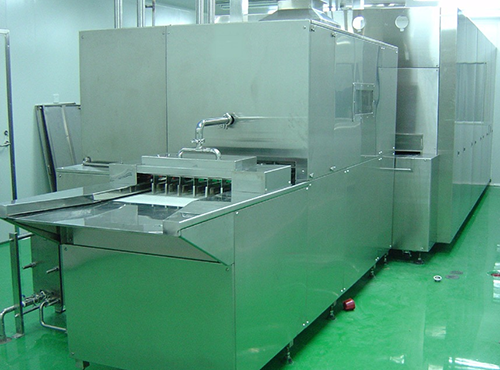

1. The machines consist of four main modules: Washing machine→Drying Tunnel→Sterilizing Tunnel→Cooling System
2. The laminar flow tunnel drying sterilizer are designed to sterile bacterial and depyrogenate the ampoules and vials by clean air in clsss 100, the machine comply with cGMP regulation ,meantime we offer IQ &OQ relevant documents.
3. This tunnel construction consists of three chambers, first is bottle inlet preheating section, middle is high temperature heating section, finally is cooling section. Meantime, the control system is use silicone control rectifier (SCR) module, to make heating chamber temperature heat distribtion very uniformity, and all blower and conveyor speed uses frequency inverter to control which is easy to adjust depend on different requirement.
4. This machine structure all designed by proof high temperature material, high temperature and high efficiency.
5. HEPA filter to ensure the products decontamination, meanwhile, completely structure and control system protection and message, refer to troubleshooting will easy maintenance.
清洗机:
1、传送带循环传送瓶子
2、超声清洗
3、清洁和处理部分向前运动,分成不同的区域,各站内外处理
4、适合清洗和处理不同媒介,以及适合内部硅化处理
5、明确分离输出输入部分使得符合GMP要求
6、可以直接连接到干燥或消毒隧道,或者可以作为独立单元进行操作
Washing Machine:
Feed station with table a broad loop-linked conveyor belt transports the vials or bottles Ultrasonic washing Cleaning and treating part with indexed forward motion, split up into various zones and respective stations for inside and outside sprays/ treating Suitable for the most different cleaning and treating media as well as for inside siliconizing The clear-cut separation of in feed and out feed sides makes them according to the GMP regulations Without problem they can be directly connected to a drying or sterilizing tunnel, or they can work as independent units.
干燥隧道/消毒隧道:
1、一般工作温度为260℃,最高工作温度为320℃。
2、高效空气过滤器效率(DOP测试99.97%)
3、根据辐射规则,干燥和灭菌最大的优势是安全及经济运行。
Drying Tunnel/ Sterilizing Tunnel:
The general temperature is 260℃(operation)maximum operating temperature is 320℃. HEPA filter efficiency is (DOP test 99.97%) The drying and sterilizing according to the radiation principle offer the advantage of greatest functional safety and economic operation.
冷却系统:
1、冷却空气通过高效空气过滤器(HEPA Filter)之前进入工作区域
2、输送机速度能匹配干燥垫圈和灭菌隧道。
Cooling System:
cooling air pass through HEPA filter before into the working zones Conveyor speeds are matching with the washer drying and sterilizing tunnel.
型号 | 产能(瓶/Hr) | 输送机宽度(mm) | 加热器(Kw) | 全部电力(Kw) | 外观尺寸((W×H×L) ) |
APST-900 | 10000~12000 | 900 | 43 | 46 | 1630×2170×6700 |
APST-600 | 7000~9000 | 600 | 36 | 39 | 1330×2170×6700 |
APST-300 | 2000~3000 | 300 | 18 | 19.2 | 910×1900×3300 |
Model | Capacity (Bottles/ Hr) | Conveyor Width (mm) | Heater(Kw) | Total Electrical Power(Kw) | Outside Dimension((W×H×L) ) |
APST-900 | 10000~12000 | 900 | 43 | 46 | 1630×2170×6700 |
APST-600 | 7000~9000 | 600 | 36 | 39 | 1330×2170×6700 |
APST-300 | 2000~3000 | 300 | 18 | 19.2 | 910×1900×3300 |
